4 Flutes Carbide Square Nose End Mill, 5/32” Shank,1/16” Cutting Diameter,Spiral Milling Cutter,Micro Grain CNC Router Bits for Steel,HRC55 TiSiN Coated (5/32” Shank-1/16” Cutting Dia-11/64” CEL)
4.6 (44 items)
Limited Time SaleUntil the end
05
56
42
US$7.19 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$4.80
Product details
| Management number | 218799898 | Release Date | 2026/05/03 | List Price | US$4.80 | Model Number | 218799898 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 4-Flutes Square Nose End Mill: large front angle effectively reduces cutting resistance, sharp and durable, convenient for removing chips, improves machining efficiency. Spiral milling cutter is ideal for edge and finished milling, can be directly or finely processed into heat treatment mold
- CNC Bits Dimensions: Cutting Diameter: 5/32”(4mm); Shank Diameter: 1/16"(1.5mm); Cutting Length: 11/64"(4.5mm) Overall Length:2”(50mm) ; Hardness: HRC55; Material: solid carbide/tungsten steel; Surface Material: TiSiN Coating. Please select cutting length 2-3mm longer than your cutting material thickness.

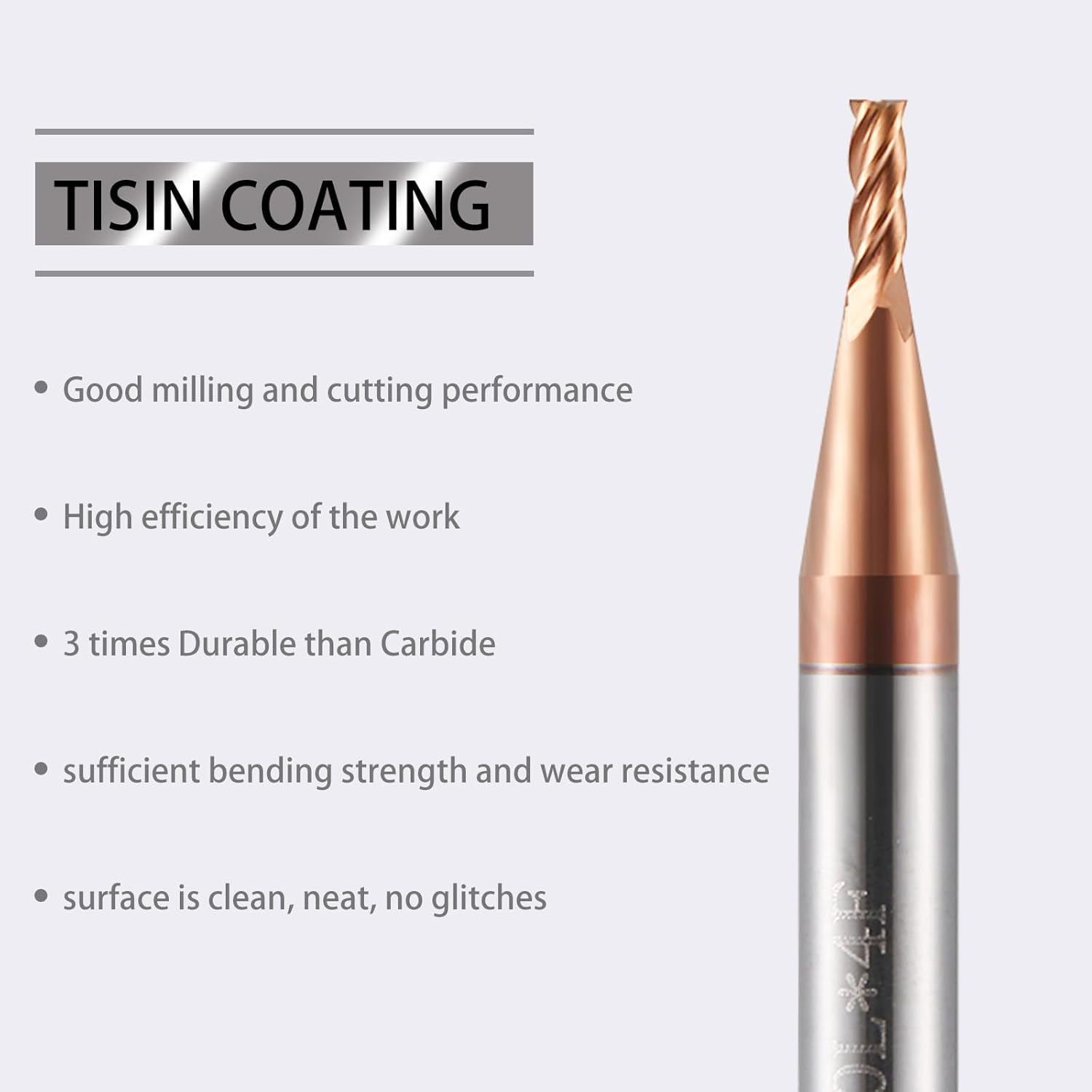

- This Carbide end mill is Bronze TiSiN Coating ,ensures the tool life is maximized, providing great lubricity and superior wear resistance at high cutting speed and temperature. The hardness of the spiral router bits is HRC 55 degrees, with high bending resistance and abrasion resistance, exclusive to high hardness, high speed cutting applications.
- Wide Applications: The CNC engraving bits are suitable for cutting aluminum alloy, copper, magnesium alloy, plastic die-casting aluminum, carbon steel, malleable cast iron, die steel, etc. For shallow groove machining, side milling and finishing. Use on CNC machining centers, engraving machines and other high-speed CNC machine tools.
- Warm Tips: The longer the length of the milling cutter tool clamped by the chuck, the better. Combined with the material to be processed, select an appropriate feed rate and cutting speed to obtain better processing accuracy and performance. The solid carbide end mills are not suitable for low-speed machines such as bench drills, electric drills, etc
| UPC | 768399608176 |
|---|---|
| Shape | Round |
| Cut Type | Finishing, Square |
| Size Name | 5/32” Shank-1/16” Cutting Dia-11/64” CEL |
| Brand Name | HOZLY |
| Unit Count | 1.0 Count |
| Part Number | D8*20*D8*60L |
| End Cut Type | Square End |
| Finish Types | TiSiN |
| Manufacturer | Hozly |
| Material Type | Tungsten Carbide |
| Cutting Length | 4.5 Millimeters |
| Tolerance Held | Precision |
| Number of Flutes | 4 |
| Included Components | Square Nose End Mill |
| Number of Cutting Edges | 4 |
