CNC Machining Workpiece Tool Setting Instrument Compatible With PROBE Engraving Machine Z Axis Machining Tool Tip Calibration With Air Blowing

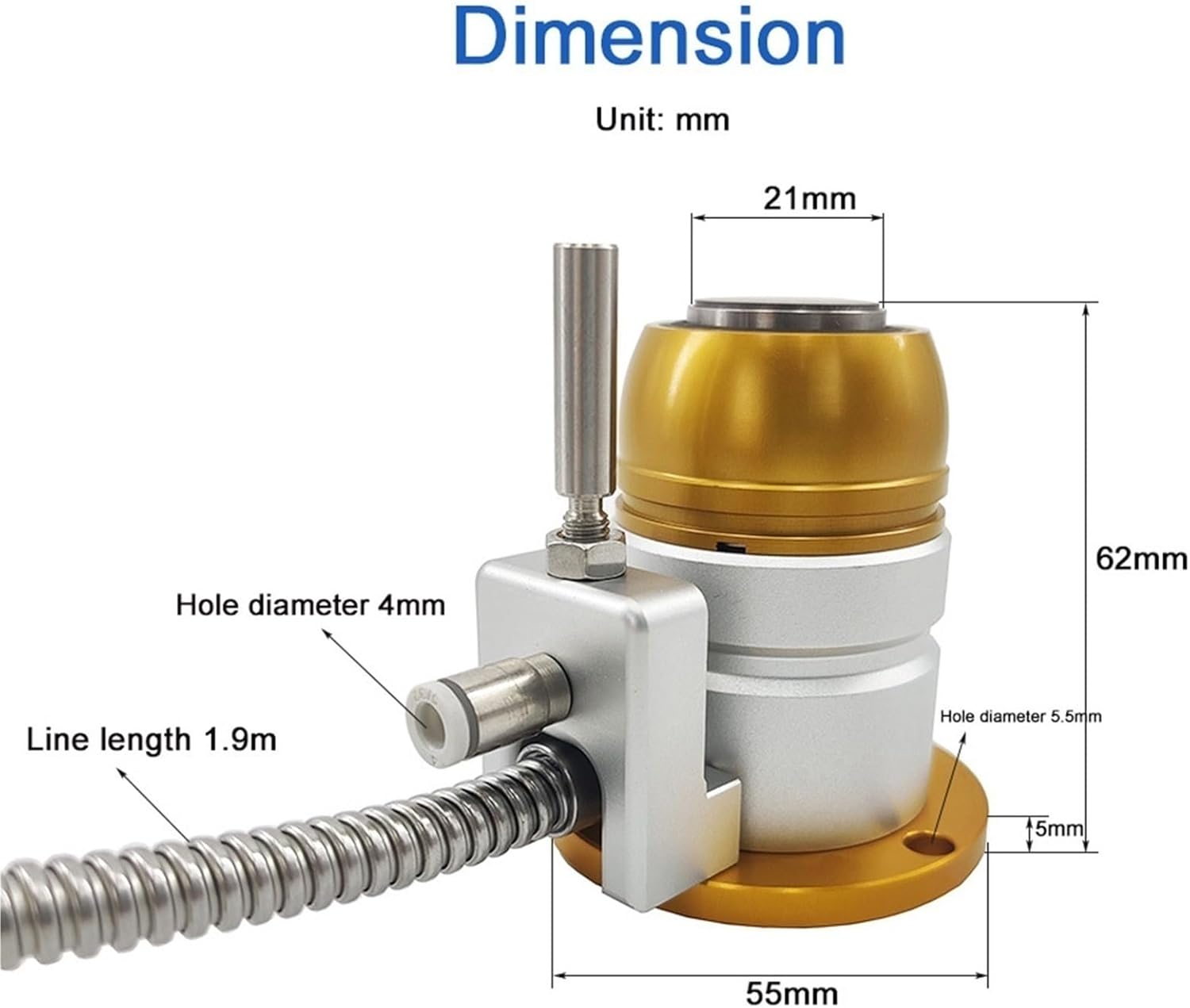

Specification:Output mode: NC (normally closed) strokeAlmost 0 before the tripStroke: 5mmRepeat positioning accuracy: 0.001mm (working speed: 50-200mm/min)Life: 3000000 timesContact force: 1.5NShell polishing: 4SProtection level: IP67Tool diameter: 20mmMaterial: cemented carbide.Out of specification: NC (normally closed), distance signal is about 5mmImpact level: DC24V 20mA (MAX) 10mA (resistive load)Installation Notes:1. The contact surface of the tool and the tool setter must be vertical, and be in contact with the contact surface vertically downwards. Try to install it on the workbench where there is less iron filings, so as not to affect the accuracy of the tool setter.2. In the rated voltage range, the use voltage is controlled at DC10-30V, the current is below 20mA, and the use temperature range is -25°C-70°C, and the use effect is better.3. The diameter of the tool to be calibrated should be controlled below 20mm, and the tool setting speed should be controlled at 50-200mm/minThe tool center should fall on the center of the tool facing.4. When using the air blowing function, the outer diameter of the trachea is 6mm, and the inner diameter is 4-5mm. Pay attention to hygiene when using it.Clean the iron filings attached to the contact surface

• 1. Waterproof and dustproof structure, with good durability in CNC machining operations.
• 2. It can greatly improve the tool setting efficiency in CNC machining.
• 3. When the stroke is exceeded, it will sound an alarm.
• 4. Automatic detection of tool damage: If the tool is damaged or broken, the machine will automatically stop running and issue a warning.
• Automatic tool wear compensation: Once the tool head wear is detected, the relevant program can be corrected to ensure the accuracy of the workpiece.
