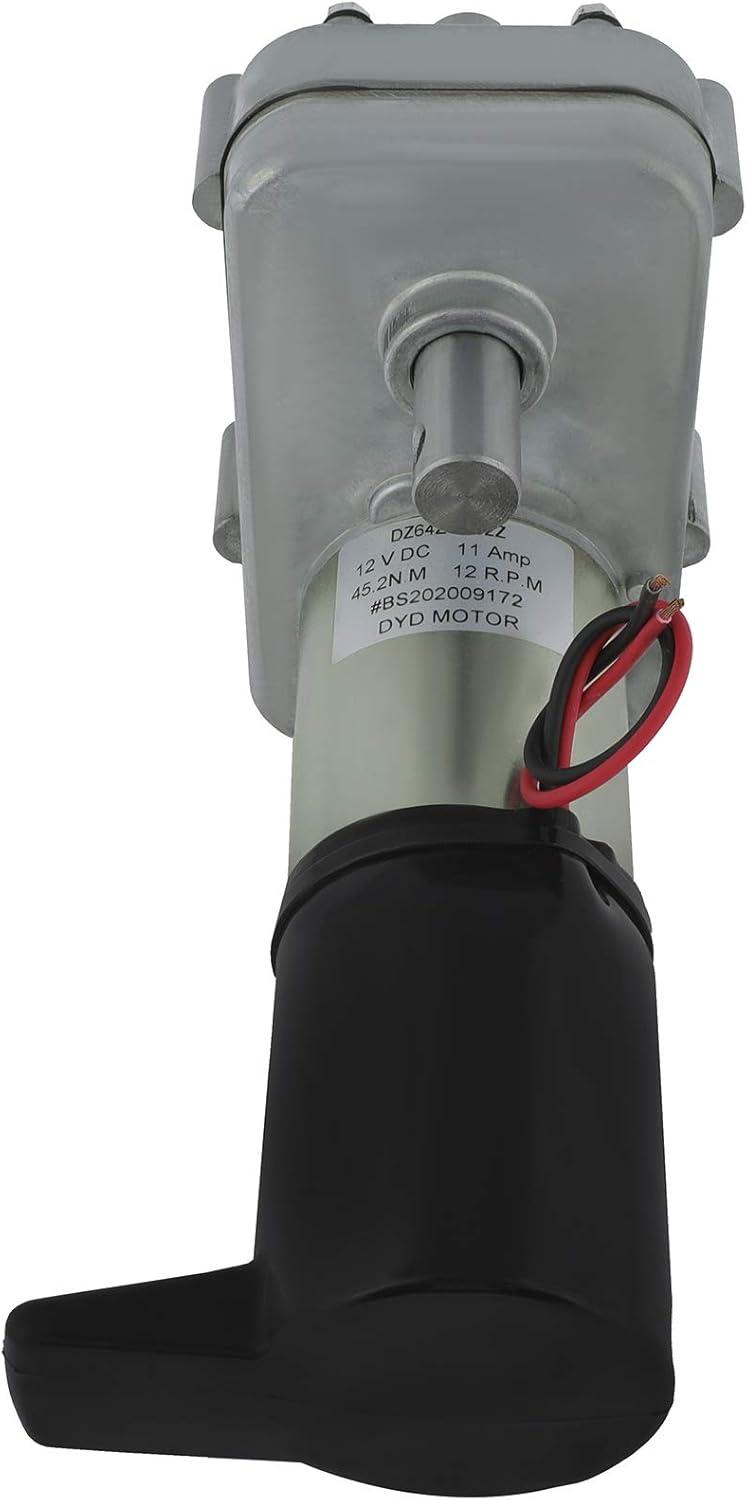

ECCPP RV Gearbox Motor, PN 523900 Power Gear Replacement Gearbox Motor 12V 521976 524327 522967 52398
5.0 (145 items)
Limited Time SaleUS$100.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215280018 | Release Date | 2026/04/12 | List Price | US$67.20 | Model Number | 215280018 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Details:Easy to Install inside the wall.Extends and Retracts Slide-Out with Ease.Amp: 12RPM: 22Voltage: 12V DCGear Ratio: 131:1Motor Type: PMDCRun Torque: 250 in-lbs12 RPM 400 in-lbs, 9.5 AmpsSpeed 9 RPM 850 in-lbs, 17 Amps14 RPM (no load)Enclosure TENVDuty IntermittentRotation ReversibleShaft Size: 1.22" x 3/4" diameter x 1.22"Mount Four bolt face mount on 3.38" x 3.38"centersPackage Include:1 Transfer Case Motor
- REPLACE - K01469-B300, K01469B300 K01439E300, 138449 130-1235, 130-1204c, K01531A300, K01265E300, K01265F300, K01285F300, 1510000006,520819 523983, 522176 (check specs) 386322 (verify bolt pattern) 521292 523143 386480, 368185, 523982, 523143S (has the smaller motor but same ratings), 523766, K01265D300 (Gear ratio lower), K01265B300, Lippert 383745. (may have to reuse, splice on, old connector from old unit) 523091, replaced by Lippert 383744 check bolt pattern on old unit to verify
- FEATURES - Speed 9 RPM @ 850 in-lbs, 17 Amps 12 RPM @ 400 in-lbs, 9.5 Amps 14 RPM (no load) Voltage 12 DC Torque 850 in-lbs Holding Torque 500 in-lbs. Rotation Reversible Duty Intermittent
- ADVANTAGES - Engineered to reduce failures.Quality tested for trouble-free performance.Quick and easy installation
- QUALITY - Sealed to prevent water intrusion and to withstand exposure to hard road and weather conditions
- NOTICE - Please check picture,part number and fitment information before placing order.Please feel free to tell us via Email if any quality problem or dissatisfaction occurs
| Model | 165610-5211-1043238961 |
|---|---|
| Speed | 17 RPM |
| Voltage | 12 Volts |
| Brand Name | ECCPP |
| Model Name | gear |
| Manufacturer | ECCPP |
| Material Type | Pn |
