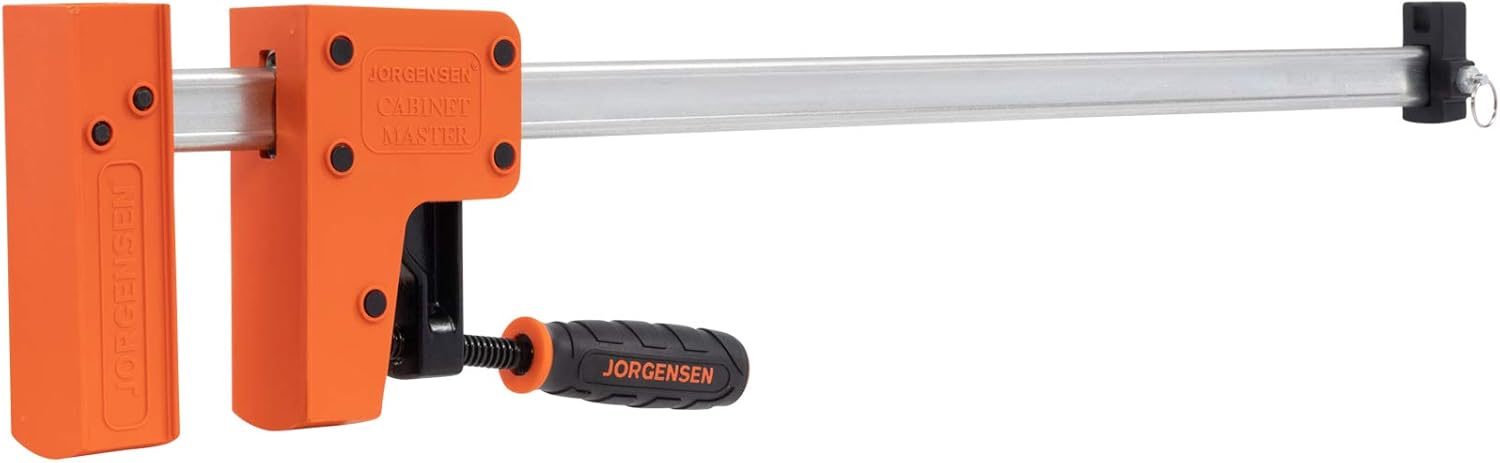

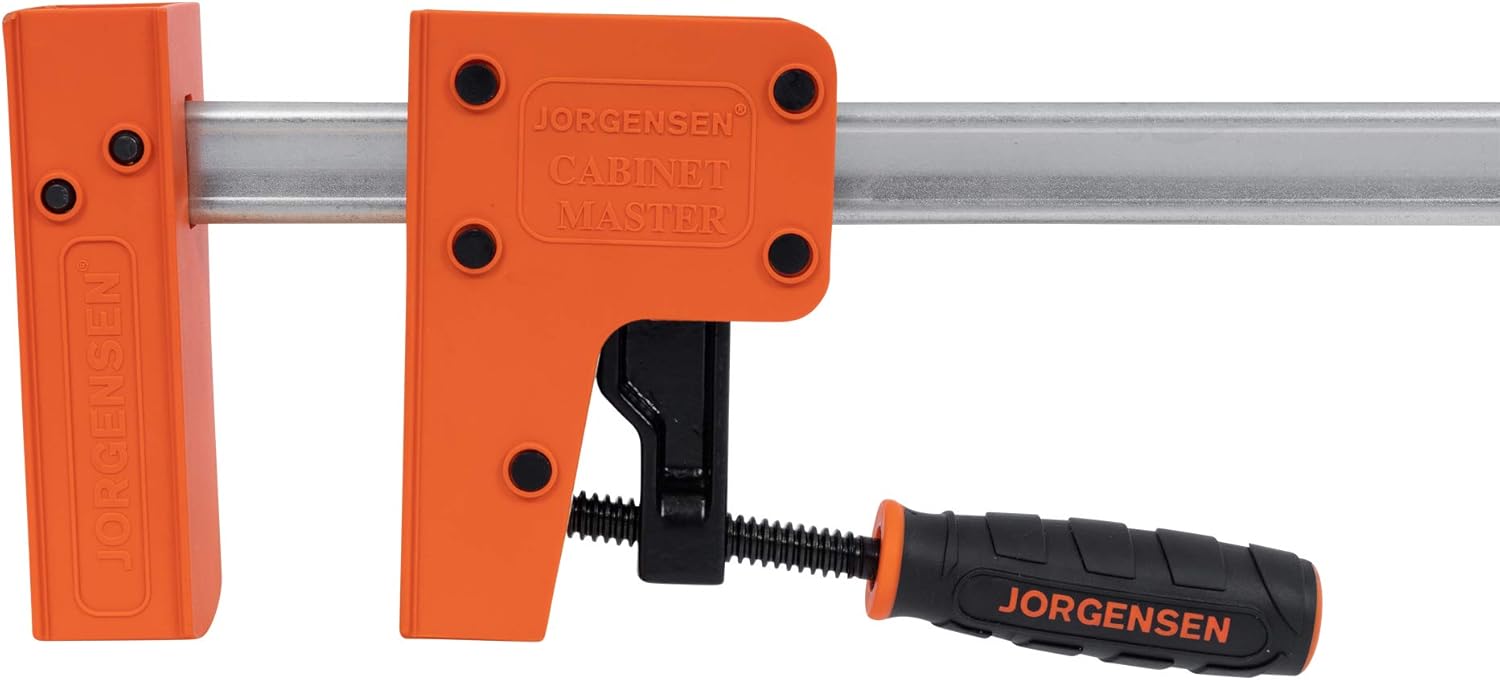

JORGENSEN 8024 Cabinet Master 24 Inch 90 Degree Parallel Steel Bar Clamp

The JORGENSEN Cabinet Master Bar Clamps are ideal for flat panel, box, cabinet, frame and panel doors assemblies or any other project that requires squareness or evenly applied pressure. Large plastic jaws assure the distribution of clamping pressure over large areas. The jaws stay parallel to assure squareness and prevent work pieces from bowing or lifting. Built in clamp stand allows clamps to stand upright for one handed use and easier/quicker sliding head adjustment. The sliding head can be reversed on the bar and the clamp then acts as a spreader. Opening capacity is 24 inches, clamping faces are 3-3/4" height and 1-7/8" width, high-carbon steel bar is 1-3/16" X 3/8", screw is 5/8" cold-drawn steel with special, smoothly cut ACME threads, large easy to grip handle and load limit is 1,000 lbs.

• Features multiple clutch disks made from hardened and plated round edge high carbon steel
• Steel bar dimensions of 1-3/16 in. by 3/8 in. and a 24 in. maximum opening
• Clamping face dimensions: 3-7/8 in. height by 1-7/8 in. width
• Clamping force of 1,500 lbs. with a load limit of 1,000 lbs.
• Distributes pressure over large surface area to ensure firm grip and protect workpiece
