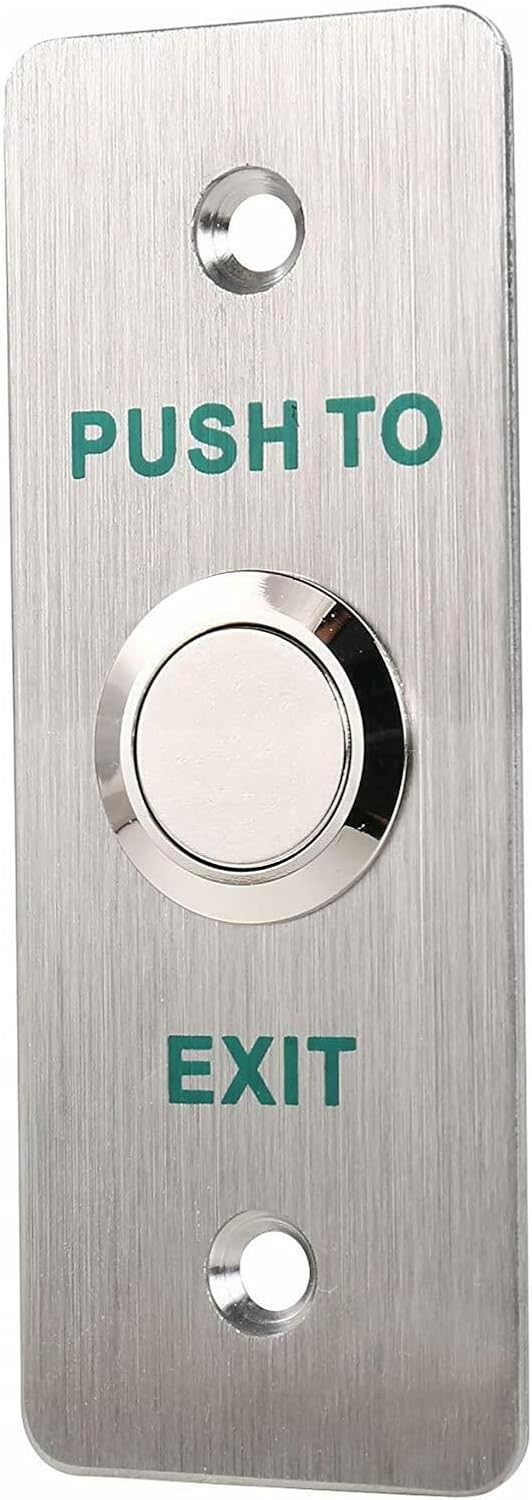

UHPPOTE Full Complete 125KHz EM-ID Card Door Access Control System Kit with 130LB Magnetic Lock Power Supply Exit Button

Access Keypad: Full programming from the keypad Adjustable door open time (0-99 seconds) Built-in buzzer; No keypad backlight Operating Voltage: 12VDC RFID Card Capacity: 500 User PIN Capactity: 500 PIN Digits: 4-8 digits Card Type: Standard 125KHz EM Card Reading Distance: Max. 6cm (2-23/64") External Reader: Not support Waterproof: Not support Keypad Backlight: Not support Shell Material: Plastic Shell Size: 100x100x18.5mm (3-15/16"x3-15/16"x47/64") Door Open Options (admin user selectable): Card Only / Password Only / Card + Password / Card or Password Working Temperature: -30°C-60°C / -22°F-140°F Working Humidity: 10%-90%RHPower Supply:Input Voltage: AC110-240V Input Frequency: 50-60Hz Output Voltage: DC12V/3A Time Delay: 0-15 seconds Material of Enclosure: Aluminum Alloy Enclosure Color: GrayEnclosure Dimensions: 4-29/64"x3-5/64"x1-17/64" / 113x78x32mmElectric Magnetic Lock: Voltage: DC12V/100mA Holding Force: 60kg / 130Lbs NC mode - (locked while supplied with power), fail safe Lock Body Size: 80Lx39Wx24.5H(mm) / 3.15Lx1.54Wx0.96H(in) Cover Finish: Anodized aluminum Lock Finish: Zinc Armature Plate Finish: ZincKeyfobs: Operation Frequency: 125KHz Standard: EM-ID compatible Each keyfob has an unique ID number.Read only and not rewritablePackage: 1 x Access control keypad 1 x Electric magnetic lock 1 x Power supply controller 1 x Exit button 10 x Keyfobs1 x English user ManualCaution:A. The screw of armature plate should not be fixed too tight. Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position B. Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it

• ✅Can be used as a stand alone keypad. Doesn't need to connect on the computer, can works alone.
• ✅Contactless RFID transponder technology
• ✅Lock output current short circuit protection
• ✅The access control keypad is made of high quanlity ABS plastic and the panel is made of hard shell rubber film.
• ✅It is widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.
