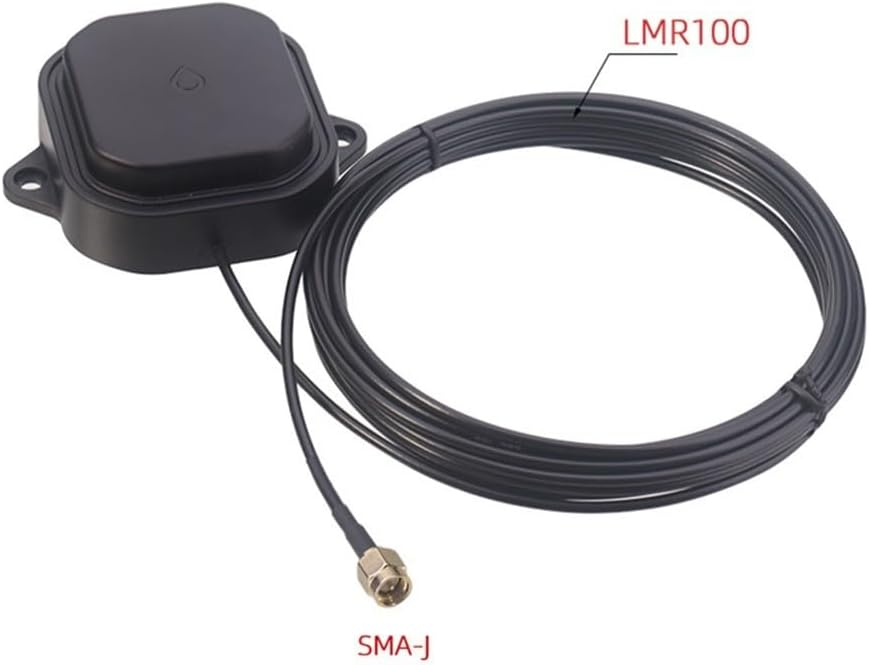

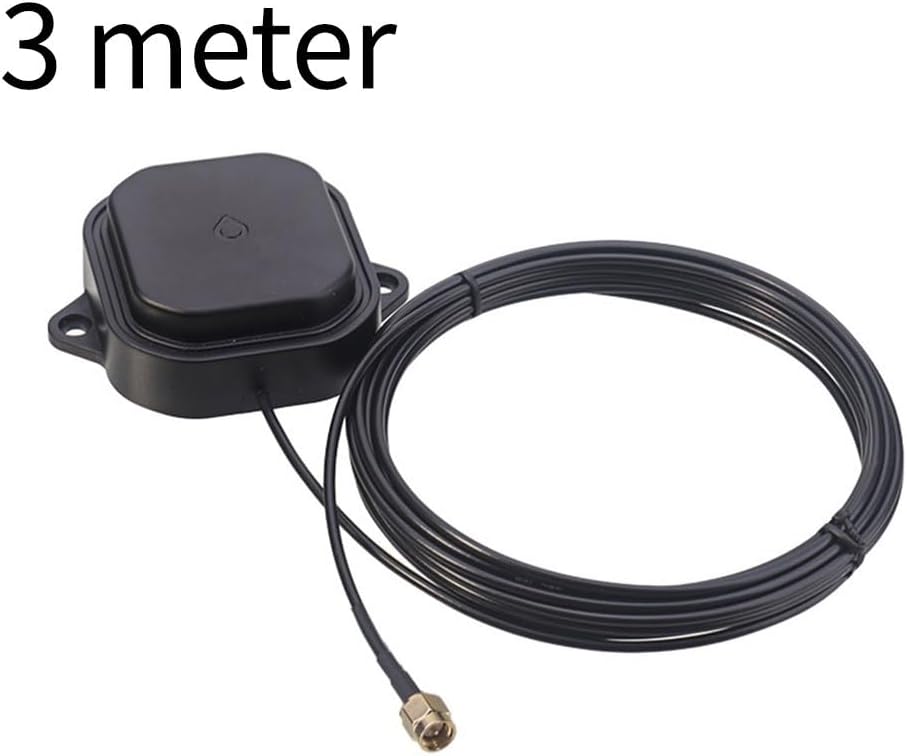

Vehicle-Mounted GNSS Antenna for Multi-System Multi-Frequency Full-Band GPS/GLONASS/BDS/Galileo, SMA-J Connector, IP67 Waterproof, 38dBi Gain,Cable(3 meter)

Features:* and* Engineering plastic + UV material shell, anti-ultraviolet* Four-system full-frequencyGPS: L1/L2/L5 GLONASS: L1/L2/L3BDS: B1/B2/B3 alileo: E1/E5/E6L-band* Adopt LMR100 line, double shielding, low loss* For small size, light weight, high positioning accuracySpecifications:*Part Name: Vehicle Antenna*Material: Engineering plastic + UV material shell*Size: 72.5*66*28mm*Color: black*Frequency range: GPS L1/L2/L5BDS B1/B2/B3GLONASS L1/L2GALILEO E1/E2/E5a/E5b*Gain: 38±2dBi*Polarization: Right-hand circular polarization (RHCP)*Antenna axial ratio: ≤3.0dB ( angle 90°)*Voltage standing wave ratio: ≤1.5*Characteristic impedance: 500*Horizontal coverage angle: 360°*Working voltage: 3.0-12.0V*Working temperature: -40°~85°C*Waterproof grade: IP67*Connector type: for SMA-J internal pin internal thread*Weight: <125g*Wire length: 3 M，5M（Optional）Package Content:1 x Vehicle Antenna

• [FULL FREQUENCY SUPPORT] This vehicle-mounted GNSS antenna covers multiple systems including GPS, GLONASS, BDS, and , ensuring precise positioning across various applications.
• [ROBUST CONSTRUCTION] Crafted from engineering plastic with a UV-resistant shell, this antenna is designed to withstand harsh environmental conditions while providing reliable performance.
• [COMPACT AND LIGHTWEIGHT] With dimensions of 5 x 66 x 28mm and a lightweight design, it is perfect for vehicles with limited space without compromising on functionality.
• [WATERPROOF AND ] Rated IP67 for waterproofing, this antenna can operate in extreme temperatures from -40°C to 85°C, making it suitable for various outdoor applications.
